SHIN HÀN NHỚT - HỆ THỐNG LỌC ISUZU 4BG1 - PHỤ TÙNG XE ĐÀO HITACHI ZX130

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

Ngày đăng: 11-08-2019

712 lượt xem

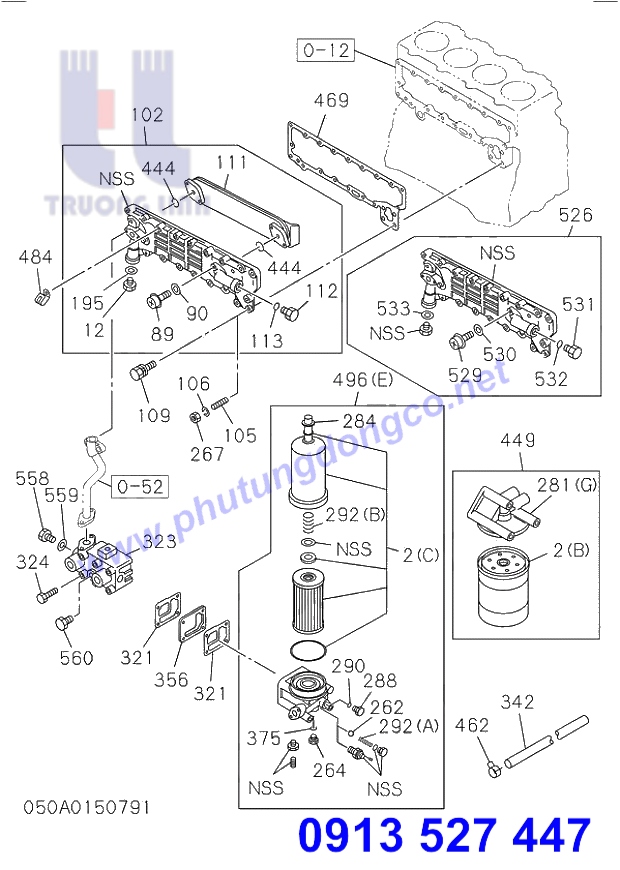

SHIN HÀN NHỚT - HỆ THỐNG LỌC ISUZU 4BG1 - PHỤ TÙNG XE ĐÀO HITACHI ZX130

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

№	Part number	Part name	Serial
002(D)	1132402290	ELEMENT; OIL FILTER	198911-200110
002(D)	1132402322	ELEMENT; OIL FILTER	200111-
12	5112880020	VALVE ASM; BYPASS	198911-
89	5112890090	BOLT; ELEMENT TO CASE	198911-200201
89	280808160	BOLT; ELEMENT TO CASE	200202-
90	1217290430	GASKET; BOLT,OIL COOLER	198911-
102	8970200372	COOLER ASM; OIL	198911-
105	8942172270	STUD; OIL COOLER	198911-
106	9091505080	WASHER; LK,OIL COOLER	198911-199911
109	8942059861	BOLT; OIL COOLER TO BODY	198911-
109	500408250	BOLT; OIL COOLER TO BODY	198911-200512
109	500408200	BOLT; OIL COOLER TO BODY	198911-200907
109	500408450	BOLT; OIL COOLER TO BODY	198911-200907
109	505408250	BOLT; OIL COOLER TO BODY	200601-
109	505408200	BOLT; OIL COOLER TO BODY	200908-
109	505408450	BOLT; OIL COOLER TO BODY	200908-
111	8970320250	CORE; OIL COOLER	198911-
112	8971281500	PLUG; OIL COOLER CASE	198911-
113	9095652250	GASKET; PLUG,OIL COOLER CASE	198911-
195	9095716200	GASKET; OIL COOLER	198911-
267	9091105080	NUT; OIL COOLER	198911-199911
267	911502080	NUT; OIL COOLER	199912-200602
267	911802080	NUT; OIL COOLER	200603-
281(F)	1132100470	COVER; OIL FILTER	198911-200110
321	8943706700	GASKET; OIL FILTER TO C/BL	198911-
323	8972234301	COVER; OIL PORT	198911-
324	280810900	BOLT; COVER,OIL PORT	198911-200512
324	280510900	BOLT; COVER,OIL PORT	200601-
444	5112820110	GASKET; ELEMENT TO BODY	198911-
469	8970196530	GASKET; OIL COOLER TO C/BL	198911-200110
469	8972333023	GASKET; OIL COOLER TO C/BL	200111-
496(F)	1132010010	FILTER ASM; OIL	198911-200110
496(F)	8973243861	FILTER ASM; OIL	200111-
557	8972221250	NIPPLE; OIL FILTER	198911-
558	8943109170	PLUG; COVER,OIL PORT	198911-
559	9095714200	GASKET; PLUG,OIL PORT COVER	198911-
560	1132600980	VALVE; RELIEF,OIL PORT COVER	198911-
