MẶT NHÔM ISUZU 4BG1 - PHỤ TÙNG XE ĐÀO HITACHI ZX130

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

Ngày đăng: 10-08-2019

473 lượt xem

MẶT NHÔM ISUZU 4BG1 - PHỤ TÙNG XE ĐÀO HITACHI ZX130

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

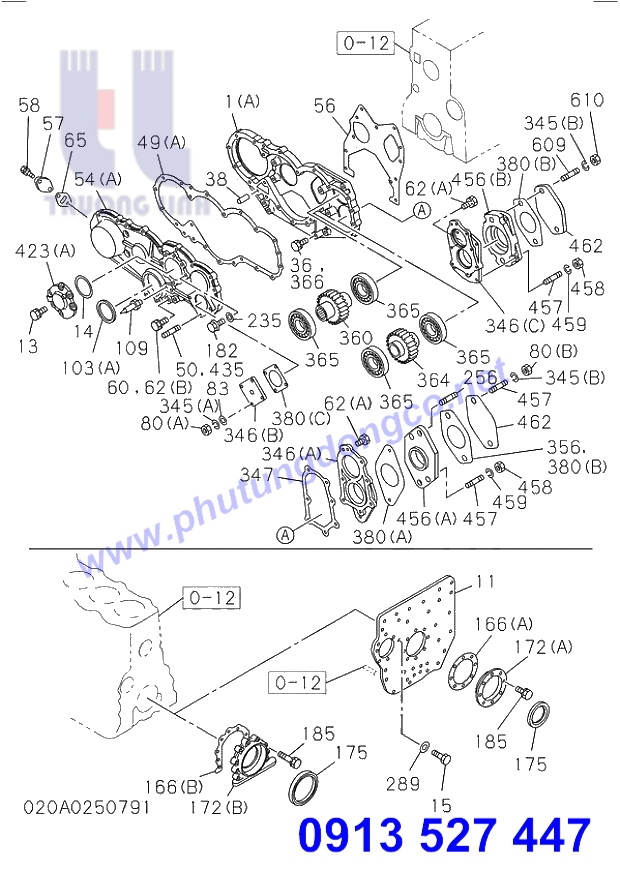

№	Part number	Part name	Serial
001(C)	8944509752	CASE; TIMING GEAR	198911-
002(A)	8970452072	HOUSING; FLYWHEEL	198911-
36	500408200	BOLT; GEAR CASE	198911-199902
36	500408450	BOLT; GEAR CASE	198911-199902
36	280808220	BOLT; GEAR CASE	199903-
36	286808400	BOLT; GEAR CASE	199903-200203
36	280808450	BOLT; GEAR CASE	200204-200512
36	280508450	BOLT; GEAR CASE	200601-
42	9112290581	DOWEL; GEAR CASE COVER	198911-
049(C)	8943210160	GASKET; GEAR CASE TO COVER	199811-200012
049(C)	8972333010	GASKET; GEAR CASE TO COVER	200101-
054(C)	8971298300	COVER; GEAR CASE	198911-
56	8943706711	GASKET; GEAR CASE TO COVER	198911-
57	5113210090	COVER; TIMING CHECK HOLE	198911-
58	500406140	BOLT; CHECK HOLE COVER	198911-199902
58	280806120	BOLT; CHECK HOLE COVER	199903-200512
58	280506120	BOLT; CHECK HOLE COVER	200601-
60	500408250	BOLT; COVER TO CASE	198911-199902
60	500408800	BOLT; COVER TO CASE	198911-199902
60	280808220	BOLT; COVER TO CASE	199903-
60	280808800	BOLT; COVER TO CASE	199903-200512
60	280508800	BOLT; COVER TO CASE	200601-
062(B)	1090440711	BOLT; COVER	198911-
062(B)	280810500	BOLT; COVER	199903-200512
062(B)	280510500	BOLT; COVER	200601-
65	8970276011	GASKET; COVER,TIMING CHECK HOLE	198911-
103(C)	1096254380	SEAL; OIL,CR/SHF,FRT	198911-
166(B)	8943706641	GASKET; RET TO C/BL	198911-
169	911502080	NUT; COVER	198911-200602
169	911802080	NUT; COVER	200603-
172(B)	8941145611	RETAINER; CR/SHF	198911-199509
172(B)	8970795200	RETAINER; CR/SHF	199510-
175	8970728231	SEAL; OIL,CR/SHF,RR	200010-
185	286808250	BOLT; RET TO C/BL	199903-200512
185	286508250	BOLT; RET TO C/BL	200601-
211(B)	208006120	BOLT; HSG	198911-200304
211(B)	280806100	BOLT; HSG	200305-200512
211(B)	280506100	BOLT; HSG	200601-
224	9944112350	STUD; STARTER	198911-200604
224	440112350	STUD; STARTER	200605-
248	8970428010	COVER; DUST,FLYWHEEL HSG RET	198911-
251	9113491341	COVER; TIMING,CHECK HOLE	198911-
341	9041108550	STUD; COVER GEAR CASE	198911-200604
341	410108550	STUD; COVER GEAR CASE	200605-
