BƠM NƯỚC ISUZU 4BG1 - PHỤ TÙNG XE ĐÀO HITACHI ZX130

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

Ngày đăng: 10-08-2019

561 lượt xem

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

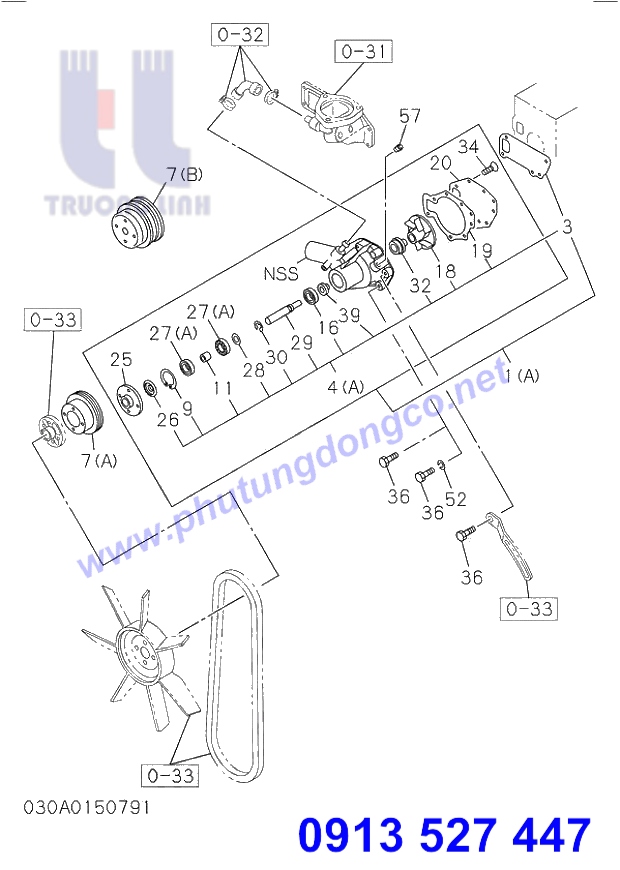

№	Part number	Part name	Serial
001(B)	8972530281	PUMP ASM; WATER,W/GASKET	198911-
3	8943706610	GASKET; PUMP TO C/BL	198911-
004(B)	5878143200	REPAIR KIT; WATER PUMP	198911-
007(B)	1136411910	PULLEY; WATER PUMP	200001-
9	9091801520	RING; SNAP,WATER PUMP	198911-
11	5136340020	SPACER; BRG,WATER PUMP	198911-
16	5096250550	SEAL; OIL,WATER PUMP	198911-
18	8972322500	IMPELLER; WATER PUMP	198911-
19	8972322480	GASKET; COVER TO BODY	198911-
20	8972322470	COVER; WATER PUMP	198911-
25	5136420072	CENTER; WATER PUMP	198911-
26	5136390010	COVER; DUST,WATER PUMP	198911-
027(A)	5098000510	BEARING; WATER PUMP	198911-
027(B)	5098000500	BEARING; WATER PUMP	198911-
027(C)	1098001700	BEARING; WATER PUMP	198911-
28	1095030700	WASHER; WATER PUMP	198911-
29	1136310740	SHAFT; WATER PUMP	198911-
30	9099521430	RING; SNAP,WATER PUMP SHAFT	198911-
31	8972236600	PIPE; SUCTION,INL	198911-200003
31	8972498951	PIPE; SUCTION,INL	200004-
32	8972322490	SEAL UNIT; WATER PUMP	198911-
34	9030908200	SCREW; COVER TO BODY,WATER PUMP	198911-
36	280810350	BOLT; WATER PUMP TO C/BL	198911-200512
36	280810450	BOLT; WATER PUMP TO C/BL	198911-200512
36	280810700	BOLT; WATER PUMP TO C/BL	198911-200512
36	280510350	BOLT; WATER PUMP TO C/BL	200601-
36	280510450	BOLT; WATER PUMP TO C/BL	200601-
36	280510700	BOLT; WATER PUMP TO C/BL	200601-
