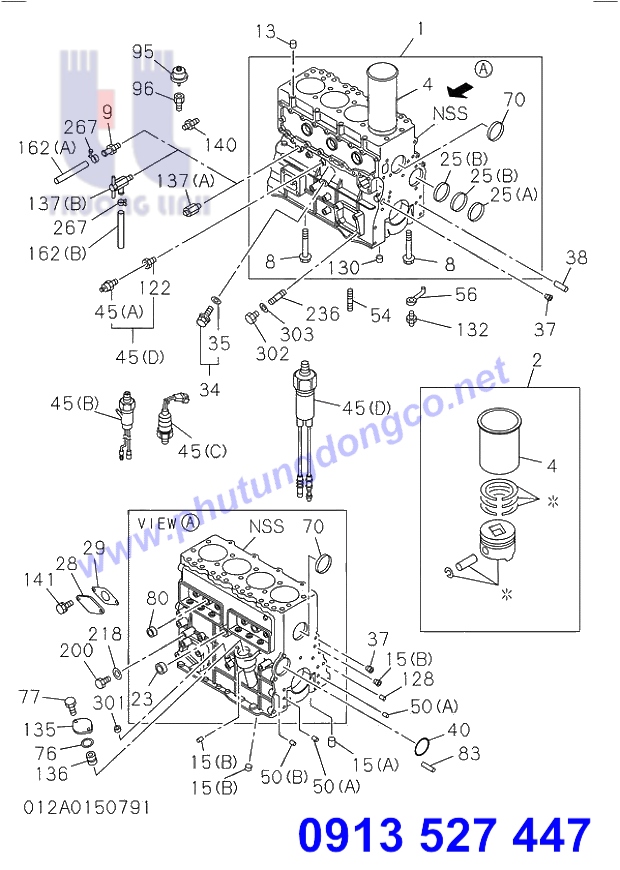

BLOCK MÁY ISUZU 4BG1 - PHỤ TÙNG XE ĐÀO HITACHI ZX130

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

Ngày đăng: 10-08-2019

606 lượt xem

BLOCK MÁY ISUZU 4BG1 - PHỤ TÙNG XE ĐÀO HITACHI ZX130

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 4BG1 dùng cho xe đào Hitachi ZX130

№	Part number	Part name	Serial
1	8943118053	BLOCK ASM; CYL	198911-199506
1	8971239544	BLOCK ASM; CYL	199507-
2	5878146611	LINER SET; ENG CYL	198911-
2	5878146621	LINER SET; ENG CYL	198911-
2	5878146631	LINER SET; ENG CYL	198911-
2	5878146641	LINER SET; ENG CYL	198911-
4	1112612480	LINER; C/BL	198911-200305
4	1112612490	LINER; C/BL	198911-200305
4	1112612500	LINER; C/BL	198911-200305
4	1112612510	LINER; C/BL	198911-200305
4	1112612520	LINER; C/BL	198911-200305
4	1112612530	LINER; C/BL	198911-200305
4	1112612540	LINER; C/BL	198911-200305
4	1112612550	LINER; C/BL	198911-200305
4	1112613821	LINER; C/BL	200306-
4	1112613831	LINER; C/BL	200306-
4	1112613841	LINER; C/BL	200306-
4	1112613851	LINER; C/BL	200306-
4	1112613861	LINER; C/BL	200306-
4	1112613871	LINER; C/BL	200306-
4	1112613881	LINER; C/BL	200306-
4	1112613891	LINER; C/BL	200306-
8	1090004692	BOLT; BRG CAP	198911-
13	8941480790	DOWEL; C/BL TO HD	198911-
015(A)	9992055170	PLUG; OIL GALLERY	198911-
015(B)	5096050180	PLUG; OIL GALLERY	198911-
23	5112190140	CUP; SEALING,C/BL FRT & RR	198911-
025(A)	9116110480	METAL; CM/SHF	198911-
025(B)	9116130350	METAL; CM/SHF	198911-
34	8970233390	VALVE; OIL RELIEF	198911-
35	5096230350	GASKET; RELIEF VLV	198911-
37	1096050681	PLUG; OIL GALLERY	198911-
38	1097400780	PIN; TIMING GEAR CASE	198911-
40	8943444620	CUP; SEALING,C/BL RR	198911-
045(B)	1824101890	SWITCH; OIL PRESSURE	200012-200109
045(B)	1824101990	SWITCH; OIL PRESSURE	200110-200409
045(C)	8973243730	SWITCH; OIL PRESSURE	200410-
56	1133421321	JET; OIL,PISTON COOLING	198911-
70	1096000521	CUP; SEALING,FRT & RR	198911-
072(C)	8972221041	COVER; TAPPET CHAMBER	198911-
073(A)	8972221050	COVER ASM; TAPPET CHAMBER	199912-200003
073(A)	1112902541	COVER ASM; TAPPET CHAMBER	200004-
074(A)	8943675301	BOLT; COVER TO C/BL	198911-
074(A)	8944299951	BOLT; COVER TO C/BL	198911-
76	1096234650	GASKET; COVER TO C/BL	198911-
77	500408200	BOLT; COVER TO C/BL	198911-199902
77	286808200	BOLT; COVER TO C/BL	199903-200512
77	286508200	BOLT; COVER TO C/BL	200601-
80	1096000122	CUP; SEALING,TAPPET CHAMBER	198911-
83	9081510180	PIN; FLYWHEEL HSG	198911-
128	9081508160	PIN; STRAIGHT,OIL SEAL RET	198911-199611
128	9081608160	PIN; STRAIGHT,OIL SEAL RET	199612-
130	5112570011	DOWEL; BRG CAP	198911-
132	1131610120	VALVE; CHECK,OIL	198911-200704
132	8973296180	VALVE; CHECK,OIL	200705-
135	1112191291	COVER; OIL PUMP	198911-
136	5112240040	BUSHING; DRIVE SHAFT,OIL PUMP	198911-
137(A)	1096800250	COCK; DRAIN,WATER	198911-
140	5096600330	NIPPLE; INJ PUMP	198911-
179	9095720080	GASKET; COVER TO BOLT	198911-
200	9992023140	PLUG; OIL GALLERY	198911-200805
200	8980429440	PLUG; OIL GALLERY	200806-
218	9095720140	GASKET; PLUG,C/BL SIDE	198911-
236	1093000550	STUD; ENG FOOT	198911-
