Phụ tùng động cơ cummins B3.9-C - Phụ tùng máy đào hyundai R140w-7

3954658 ROD-CONNECTING 3954657 ROD-CONNECTING 3939859 BEARING-C/ROD(STD) 3901171 BEARING-C/ROD(0.25) 3901172 BEARING-C/ROD(0.50) 3901173 BEARING-C/ROD(0.75) 3901174 BEARING-C/ROD(1.00)

Ngày đăng: 16-04-2020

618 lượt xem

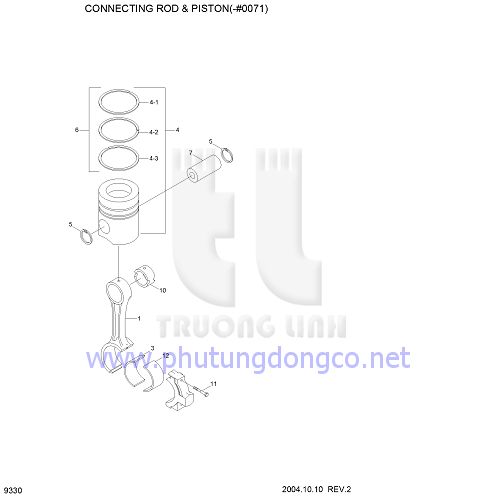

Piston động cơ cummins B3.9-C - Phụ tùng máy đào hyundai R140w-7

1	3954658	ROD-CONNECTING
*.	3954657	ROD-CONNECTING
3	3939859	BEARING-C/ROD(STD)
3	3901171	BEARING-C/ROD(0.25)
3	3901172	BEARING-C/ROD(0.50)
3	3901173	BEARING-C/ROD(0.75)
3	3901174	BEARING-C/ROD(1.00)
4	3802747	KIT-ENGINE PISTON
N*.	3928674	PISTON-ENGINE
4-1.	3902286	RING-COMPRESSION
4-2.	3937392	RING-COMPRESSION
4-3.	3932520	RING-OIL PISTON
5	3920691	RING-RETAINING
6	3802421	SET-PISTON RING
7	3934047	PIN-PISTON
4	3802764	KIT-ENG PISTON
*N.	3928674	PISTON-ENGINE
5	3920691	RING-RETAINING
6	3802422	SET-P/RING(0.50 O/S)
4	3802765	KIT-ENG PISTON
*N.	3928675	PISTON-ENGINE
5	3920691	RING-RETAINING
6	3802423	SET-PISTON RING
10	4891178	BUSHING
11	4891179	SCREW
12	4893693	BEARING-C/ROD(STD)
