Phụ tùng động cơ Case 188 - Case spare parts genuine

A146696 ENGINE OIL FILTER A153552 ADAPTER G11844 PUMP, ENGINE OIL A29270 VALVE - relief, oil pump A140222 PLUG A58608 GASKET A39321 PLUG,Cup, 7/16" G46852 GASKET A39035 TUBE 223-207 LOCK NUT

Ngày đăng: 14-01-2020

521 lượt xem

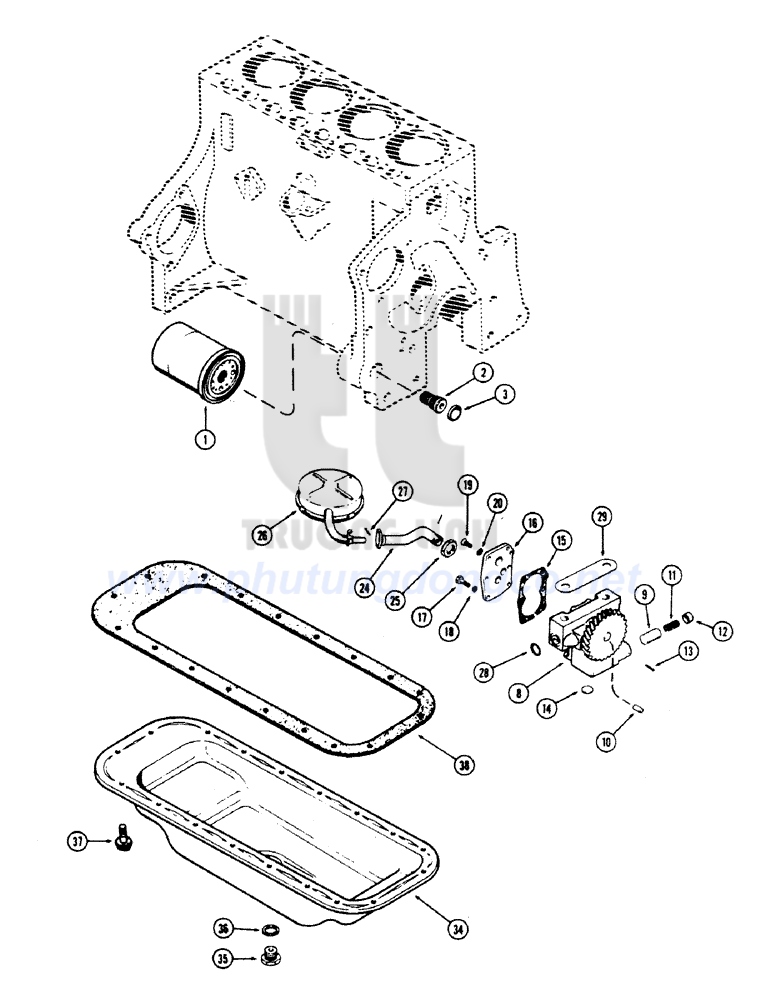

Bơm nhớt, lọc nhớt động cơ case 188 - case spare parts genuine

A146696	ENGINE OIL FILTER
A153552	ADAPTER
41-1016	PLUG,Cup, 1"
G11844	PUMP, ENGINE OIL
A29270	VALVE - relief, oil pump
138-51	LOCK PIN,1/8" x 3/8", Slotted
G48513	VALVE SPRING
A29260	RETAINER
132-50	COTTER PIN,1/8" x 1 1/4"
A39321	PLUG,Cup, 7/16"
G46852	GASKET
NSS	NOT SOLD SEPARAT
13-420	BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
13-412	BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
92-4	LOCK WASHER,1/4"
73-410	SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"
193-52	LOCK WASHER,Ext Csk Tooth, 1/4"
A39035	TUBE
223-207	LOCK NUT
A39036	FLOAT
132-50	COTTER PIN,1/8" x 1 1/4"
A27365	O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
G11337	SHIM,.002" Thk
G11338	SHIM,.005" Thk
A36717	PAN
A140222	PLUG
A58608	GASKET
193-514	SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"
