MẶT MÁY ĐỘNG CƠ CUMMINS QSX15

4319031 camshaft bushing, 3685690 bushing, 4310932 bushing, 3901846 pin dowel, 4026657 valve stem guide, 4299098 cylinder head gasket, 3813247 expansion plug

Ngày đăng: 24-06-2019

2,469 lượt xem

MẶT MÁY ĐỘNG CƠ CUMMINS QSX15

*PARTS NUMBER CUMMINS QSX15 CYLINDER HEAD ASS'Y

4920469 Threaded Plug, 3678603 O Ring Seal, 3679551 Valve Spring, 3679659 Insert, Valve, 4059215 Insert, Valve, 3680883 Valve Collet, 3680884 Valve Spring Retainer, 3680318 Valve Spring Guide, 3911678 Ring Dowel, 4101454 Exhaust Valve, 4965868 Intake Valve, 3104291 Cylinder Head, 3015865 Expansion Plug, 3687210 Rectangular Ring Seal, 3412352 Injector Sleeve, 4026657 Valve Stem Guide, 3685690 Bushing, 4319031 Camshaft Bushing, 4310932 Bushing, 3813247 Expansion Plug, 4299098 Cylinder Head Gasket, 3901846 Pin Dowel, 3678506 Screw, Fracture Resistant, 3678804 Screw, Fracture Resistant

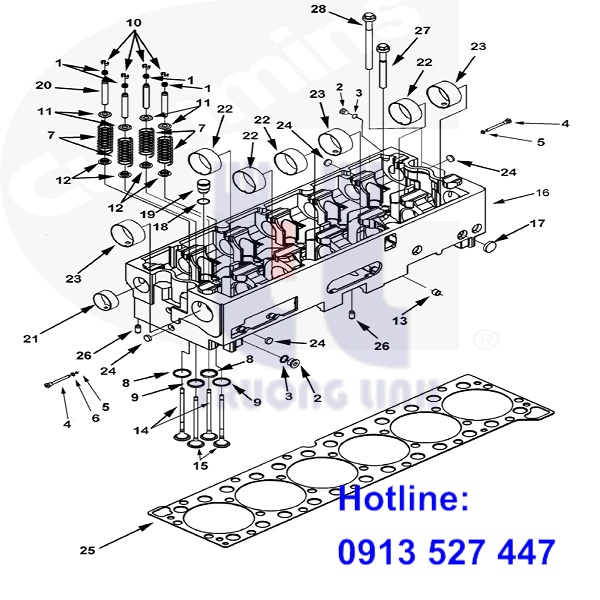

cummins qsx15 cylinder head ass'y

No	Parts number	Description
1	4312008	Valve Stem Seal
2	3678611	Threaded Plug
3	3678606	O Ring Seal
4	4920469	Threaded Plug
5	3678603	O Ring Seal
7	3679551	Valve Spring
8	3679659	Insert, Valve
9	4059215	Insert, Valve
10	3680883	Valve Collet
11	3680884	Valve Spring Retainer
12	3680318	Valve Spring Guide
13	3911678	Ring Dowel
14	4101454	Exhaust Valve
15	4965868	Intake Valve
16	3104291	Cylinder Head
17	3015865	Expansion Plug
18	3687210	Rectangular Ring Seal
19	3412352	Injector Sleeve
20	4026657	Valve Stem Guide
21	3685690	Bushing
22	4319031	Camshaft Bushing
23	4310932	Bushing
24	3813247	Expansion Plug
25	4299098	Cylinder Head Gasket
26	3901846	Pin Dowel
27	3678506	Screw, Fracture Resistant
28	3678804	Screw, Fracture Resistant
