HỆ THỐNG NHIÊN LIỆU ISUZU 6BD1 - PHỤ TÙNG XE ĐÀO HITACHI EX200-2

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 6BD1 dùng cho xe đào Hitachi EX200-2

Ngày đăng: 08-08-2019

485 lượt xem

HỆ THỐNG NHIÊN LIỆU ISUZU 6BD1 - PHỤ TÙNG XE ĐÀO HITACHI EX200-2

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 6BD1 dùng cho xe đào Hitachi EX200-2

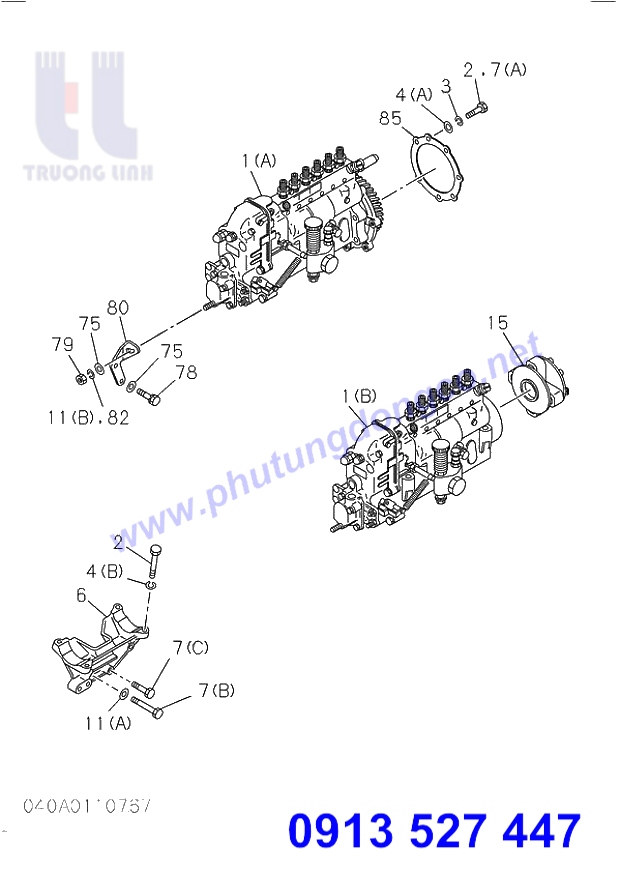

№	Part number	Part name	Serial
1(A)	1156026582	PUMP ASM; INJ	199211 -
3	9091505080	WASHER; LK,INJ PUMP	199211 -
4(A)	9091605080	WASHER; INJ PUMP	199211 -
7(A)	108108600	BOLT; INJ PUMP BRKT	199211 - 199902
7(A)	108058600	BOLT; INJ PUMP BRKT	199903 -
11(A)	9091505100	WASHER; INJ PUMP BRKT	199211 -
16	1154150100	PIPE; INJ NO.1	199211 -
17	1154150110	PIPE; INJ NO.2	199211 -
18	1154150120	PIPE; INJ NO.3	199211 -
19	1154150130	PIPE; INJ NO.4	199211 -
20	1154150140	PIPE; INJ NO 5	199211 -
21	1154150150	PIPE; INJ NO 6	199211 -
31	8970161461	NOZZLE ASM; INJ	199306 -
32(B)	8970161471	HOLDER ASM; NOZZLE	199306 -
33	8970161480	NOZZLE; INJ	199211 -
34	1153390090	BOLT; EYE,NOZZLE HOLDER	199211 -
35	8941711950	NUT; NOZZLE RET,NOZZLE HOLDER	199211 - 199305
35	1153320170	NUT; NOZZLE RET,NOZZLE HOLDER	199306 -
36	1153390100	GASKET; RETURN PIPE,NOZZLE HOLDER	199211 -
37	5153320060	NUT; CAP,NOZZLE HOLDER	199211 -
38(B)	5153390600	GASKET; CAP NUT,NOZZLE HOLDER	199211 -
39(B)	8941695030	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	199211 - 199305
39(B)	8941695030	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	199306 -
41	8943203080	CONNECTOR; FUEL INL,NOZZLE HOLDER	199211 -
44(B)	5153430050	SPRING; NOZZLE,NOZZLE HOLDER	199211 -
45(B)	8941695020	ROD; PUSH,NOZZLE HOLDER	199211 - 199305
45(B)	8941695020	ROD; PUSH,NOZZLE HOLDER	199306 -
46	9153470030	PIN; NOZZLE SET,NOZZLE HOLDER	199211 -
54	9153390510	COVER; DUST,NOZZLE HOLDER	199211 -
60	9091505080	WASHER; NOZZLE HOLDER	199211 -
62	9091104080	NUT; NOZZLE HOLDER	199211 -
66	5153150030	GASKET; INJ NOZZLE	199211 -
75	9091607100	WASHER; PL,BRKT TO INJ PUMP	199211 -
75	9091607100	WASHER; PL,BRKT TO INJ PUMP	199211 -
78	500410200	BOLT; BRKT TO C/BL	199211 -
79	9091104100	NUT; BRKT TO INJ PUMP	199211 -
80	5197510042	BRACKET; PUMP	199211 -
82	9091505100	WASHER; LK,BRKT TO C/BL	199211 -
85	1113190090	GASKET; BRKT,INJ PUMP	199211 - 199510
85	8943706750	GASKET; BRKT,INJ PUMP	199511 -
114(A)	9154196120	CLIP; INJ PIPE	199211 -
133(A)	1154124711	PIPE; INJ NOZZLE LEAK OFF	199211 -
134	1096750371	BOLT; JOINT,LEAK OFF PIPE	199211 -
135	9095714080	GASKET; JOINT BOLT,LEAK OFF PIPE	199211 - 199305
135	1096300820	GASKET; JOINT BOLT,LEAK OFF PIPE	199306 -
