BLOCK MÁY ISUZU 6RB1 - PHỤ TÙNG XE ĐÀO HITACHI EX400-3

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 6RB1 dùng cho xe đào Hitachi EX400-3

Ngày đăng: 14-10-2019

776 lượt xem

BLOCK MÁY ISUZU 6RB1 - PHỤ TÙNG XE ĐÀO HITACHI EX400-3

Chúng tôi xin gởi đến Quý khách hàng mã sản phẩm phụ tùng động cơ isuzu 6RB1 dùng cho xe đào Hitachi EX400-3

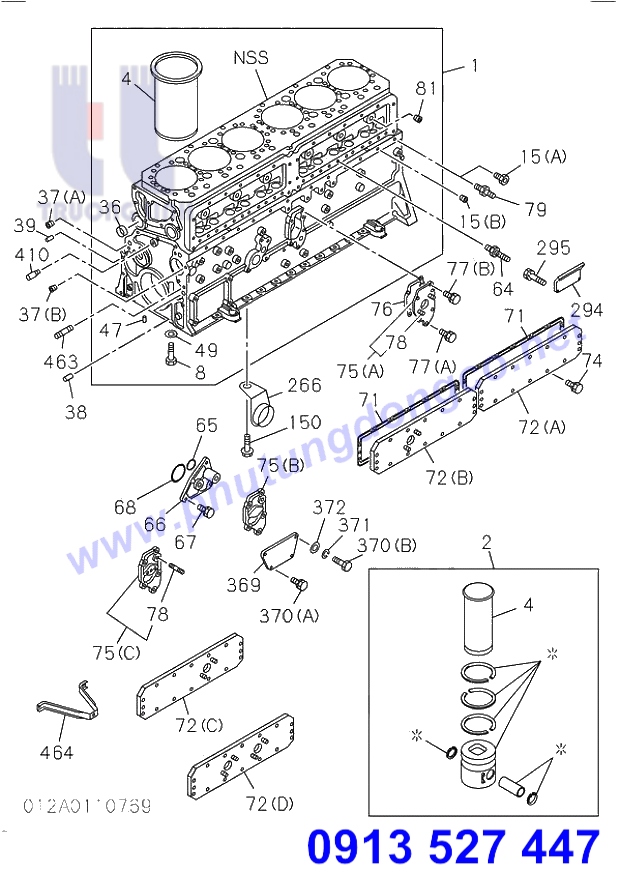

№	Part number	Part name	Serial
1	1112104210	BLOCK ASM; CYL	198308 -
2	1878115920	LINER SET; ENG CYL	198308 -
2	1878115930	LINER SET; ENG CYL	198308 -
4	1112612880	LINER; C/BL	198905 -
4	1112612890	LINER; C/BL	198905 -
8	9098042170	BOLT; BRG CAP	198308 -
8	9098042180	BOLT; BRG CAP	198308 -
11	9095714180	GASKET; CONN TO C/BL	198406 -
15(B)	1096050500	PLUG; OIL GALLERY	198308 -
27	1096605680	NIPPLE; OIL GALLERY	199004 -
27	1096605680	NIPPLE; OIL GALLERY	199303 -
28	9112192140	COVER; OIL PORT	198308 -
29	1096234500	GASKET; COVER,OIL PORT	199004 -
30(A)	9081508160	PIN; CYL HD GASKET SETTING	198308 -
30(B)	9112290112	PIN; CYL HD GASKET SETTING	198308 -
31	1096050190	PLUG; OIL GALLERY	198308 -
32	9081508160	PIN; INJ PUMP BRKT	198308 -
34	9131600602	VALVE; OIL RELIEF	198308 -
35	1096230590	GASKET; RELIEF VLV	198308 -
36	1096000051	CUP; SEALING,WATER JACKET	198308 -
37(A)	1096050250	PLUG; OIL GALLERY	198308 -
37(A)	1096090141	PLUG; OIL GALLERY	198308 -
37(B)	1096050560	PLUG; OIL GALLERY	198308 -
38	9081512220	PIN; TIMING GEAR CASE	198308 -
39	1112290130	DOWEL; IDLE GEAR SPINDLE	198606 -
47	9081508160	PIN; BRG CAP	198308 -
49	9098519150	WASHER; BRG CAP	198308 -
56	1133421111	JET; OIL,PISTON COOLING	198308 -
56	1133421121	JET; OIL,PISTON COOLING	198308 -
57	208008200	BOLT; OIL JET	199004 -
58	9041108200	STUD; OILING JET	198308 -
59	9091104080	NUT; OILING JET	198308 -
64	1096601041	CONNECTOR; TURBOCHARGER OIL FEED	198308 -
65	1096234500	GASKET; SUCTION	199004 -
66	1133412040	CONNECTOR; PARTIAL FILTER	198308 -
67	501510250	BOLT; CONNECTOR	199004 -
68	1096235410	GASKET; RETURN	199004 -
71	1112920280	GASKET; COVER TO C/BL	198808 - 199603
71	1112920310	GASKET; COVER TO C/BL	199604 -
72(A)	1112910340	COVER; TAPPET CHAMBER	198308 -
72(B)	1112910351	COVER; TAPPET CHAMBER	198308 -
74	500408220	BOLT; COVER TO C/BL	199004 -
74	500408250	BOLT; COVER TO C/BL	199004 -
75(C)	1112191210	COVER; C/BL,OIL PUMP	198308 -
76	1131140080	GASKET; COVER TO C/BL	198808 - 199603
76	1131140110	GASKET; COVER TO C/BL	199604 -
77(A)	500510350	BOLT; COVER TO C/BL	199004 -
77(B)	500510400	BOLT; COVER TO C/BL	199004 -
77(B)	500510400	BOLT; COVER TO C/BL	198308 -
78	9041108300	STUD; COVER OIL PUMP	198308 -
79	1096603591	NIPPLE; OIL FEED,TURBOCHARGER	198308 -
81	9098640501	PLUG; WATER JACKET	198308 -
82	9044114420	STUD; FLYWHEEL HSG	198308 -
83	9081514280	PIN; FLYWHEEL HSG	198308 -
84	9092013710	PLUG; CAM BRG	198308 -
137	1096800260	COCK; DRAIN,WATER	198308 -
162(A)	9099147010	HOSE; WATER DRAIN,C/BL	198308 -
242	500408200	BOLT; COVER,OIL PORT	199004 -
277	9091505140	WASHER; LK,BRKT	198308 -
279	238014250	BOLT; BRKT,ENG STOPPER	199004 -
281	1197890170	BRACKET; CABLE,ENG STOPPER	198308 -
337(A)	1096300860	GASKET; PLUG	198308 -
337(B)	1096300850	GASKET; PLUG	198308 -
410	9133420020	JET; OIL,TIMING GEAR	198308 -
458(A)	1096040670	PLUG; CONNECTOR	198308 -
458(B)	8941526130	PLUG; CONNECTOR	198308 -
463	9098311610	STUD; TIMING GEAR CASE	198308 -
