BLOCK MÁY ISUZU 4BD1 - PHỤ TÙNG XE ĐÀO HITACHI EX120-2

Mã chi tiết sản phẩm phụ tùng động cơ Isuzu 4BD1-TPZ02 dùng cho xe đào Hitachi EX120-2.

Ngày đăng: 07-08-2019

587 lượt xem

BLOCK MÁY ISUZU 4BD1 - PHỤ TÙNG XE ĐÀO HITACHI EX120-2

Mã chi tiết sản phẩm phụ tùng động cơ Isuzu 4BD1-TPZ02 dùng cho xe đào Hitachi EX120-2.

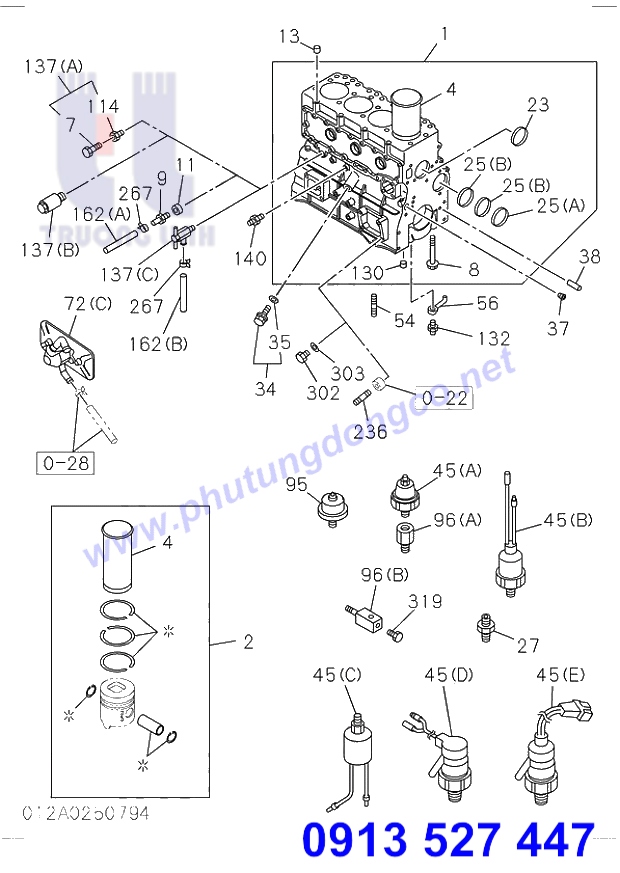

№	Part number	Part name	Serial
1	8941305355	BLOCK ASM; CYL	199311 -
2	5878132720	LINER SET; ENG CYL	199311 -
2	5878132730	LINER SET; ENG CYL	199311 -
2	5878132740	LINER SET; ENG CYL	199311 -
2	5878132750	LINER SET; ENG CYL	199311 -
4	1112612400	LINER; C/BL	199311 -
4	1112612410	LINER; C/BL	199311 -
4	1112612420	LINER; C/BL	199311 -
4	1112612430	LINER; C/BL	199311 -
4	1112612440	LINER; C/BL	199311 -
4	1112612450	LINER; C/BL	199311 -
4	1112612460	LINER; C/BL	199311 -
4	1112612470	LINER; C/BL	199311 -
8	1090004691	BOLT; BRG CAP	199311 -
13	8941480790	DOWEL; C/BL TO HD	199311 -
15	9992055170	PLUG; OIL GALLERY	199311 -
15	5096050180	PLUG; OIL GALLERY	199311 -
23	1096000520	CUP; SEALING,C/BL FRT & RR	199311 -
25(A)	9116110480	METAL; CM/SHF	199311 -
25(B)	9116130350	METAL; CM/SHF	199311 -
34	8970233390	VALVE; OIL RELIEF	199311 -
35	5096230350	GASKET; RELIEF VLV	199311 -
37	1096050681	PLUG; OIL GALLERY	199311 -
38	1097400780	PIN; TIMING GEAR CASE	199311 -
45(B)	1824100912	SWITCH; OIL PRESSURE	199311 - 200011
45(B)	1824101900	SWITCH; OIL PRESSURE	200012 - 200109
45(B)	1824102000	SWITCH; OIL PRESSURE	200110 -
56	1133421100	JET; OIL,PISTON COOLING	199311 -
71	8943673681	GASKET; COVER TO C/BL	199311 - 200011
72(A)	8970285250	COVER; TAPPET CHAMBER	199311 - 200011
72(A)	8972221041	COVER; TAPPET CHAMBER	200012 -
72(B)	5112901451	COVER; TAPPET CHAMBER	199311 - 200011
72(B)	1112902541	COVER; TAPPET CHAMBER	200012 -
74(A)	8943675301	BOLT; COVER TO C/BL	199311 -
74(A)	8944299951	BOLT; COVER TO C/BL	199311 -
76(A)	1096234650	GASKET; COVER TO C/BL	199311 -
77	500408200	BOLT; COVER TO C/BL	199311 - 199912
77	286808200	BOLT; COVER TO C/BL	200001 -
80	1096000121	CUP; SEALING,TAPPET CHAMBER	199311 -
83	9081510180	PIN; FLYWHEEL HSG	199311 -
113	5112190140	CUP; SEALING,	199311 -
128	9081508160	PIN; STRAIGHT,OIL SEAL RET	199311 - 199611
128	9081608160	PIN; STRAIGHT,OIL SEAL RET	199612 -
129	9098600190	PLUG; PLATE,C/BL	199311 -
130	5112570011	DOWEL; BRG CAP	199311 -
132	8943641510	VALVE; CHECK,OIL	199311 -
135	1112191291	COVER; OIL PUMP	199311 -
136	5112240040	BUSHING; DRIVE SHAFT,OIL PUMP	199311 -
137(B)	1096800250	COCK; DRAIN,WATER	199311 -
140	5096600330	NIPPLE; INJ PUMP	199311 -
179	9095720080	GASKET; COVER TO BOLT	199311 -
200	9992023140	PLUG; OIL GALLERY	199311 -
218	9095720140	GASKET; PLUG,C/BL SIDE	199311 -
236	1093000530	STUD; ENG FOOT	199311 -
