CUMMINS QSM11 CYLINDER BLOCK

3008446 pin dowel, 3008468 pipe plug, 3026231 ring dowel, 3040813 threaded plug, 3037537 o ring seal, 3040810 treaded plug, 30426201 o ring seal, 3069728 sensor, vicscosity, 3068979 plunger, prs regulator, 3010146 compression spring, 3821725 retainer plug, 3080760 cylinder liner, 3047188 rectangular ring seal.

Post date: 27-06-2019

2,081 view(s)

CUMMINS QSM11 CYLINDER BLOCK

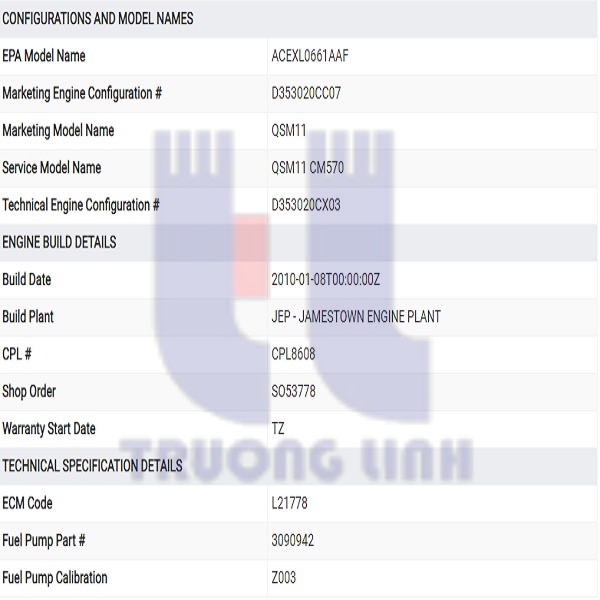

* DATASHEET ENGINE CUMMINS QSM11

PHỤ TÙNG ĐỘNG CƠ CUMMINS QSM11

* PART NUMBER CUMMINS QSM11 CYLINDER BLOCK

4060392 cylinder block, 148555 pin dowel, 179063 retainer plug, 3014754 plain washer, 3014755 valve disc, 3014756 compression spring, 2878168 bushing, 3008466 pipe plug, 3026758 seat, prs regulator valve, 4060387 main bearing cap, 4060391 main bearing cap, 3026961 main bearing cap, 3328742 hexagon head cap screw, 3019631 plain washer, 3895832 stud, 70550 pin dowel, 142207 pin dowel, 3007635 expansion plug, 3007632 expansion plug.

cummins qsm11 cylinder block

cummisn qsm11 cylinder liner

No	Part Number	Description
1	4060392	Cylinder Block
2	148555	Pin Dowel
3	179063	Retainer Plug
4	3014754	Plain Washer
5	3014755	Valve Disc
6	3014756	Compression Spring
7	2878168	Bushing
8	3008466	Pipe Plug
9	3026758	Seat, Prs Regulator Valve
10	4060387	Main Bearing Cap
10	3026961	Main Bearing Cap
10	4060391	Main Bearing Cap
11	3328742	Hexagon Head Cap Screw
12	3019631	Plain Washer
13	3895832	Stud
14	70550	Pin Dowel
15	142207	Pin Dowel
16	3007635	Expansion Plug
17	3007632	Expansion Plug
18	3008446	Pin Dowel
19	3008468	Pipe Plug
20	3026231	Ring Dowel
21	3040813	Threaded Plug
22	3037537	O Ring Seal
23	3040810	Threaded Plug
24	3046201	O Ring Seal
25	3069728	Sensor, Viscosity
26	3068979	Plunger, Prs Regulator
27	3010146	Compression Spring
28	3821725	Retainer Plug
29	3080760	Cylinder Liner
30	3047188	Rectangular Ring Seal
